Products

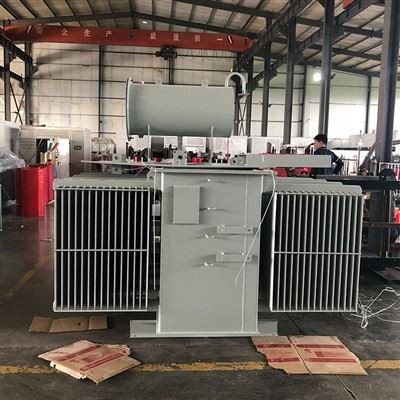

2000KVA Transformer
2000KVA,33/0.433KV,
Cu Winding, Level-2,
ONAN, Outdoor type,
Distribution Transformer
Features
2000 KVA Transformer Specification
|
Rating in KVA |
2000KVA,33/0.433KV, Cu Winding, Level-2, ONAN, Outdoor type, Distribution Transformer |
|
No. of phases |
Three |
|
Primary Voltage |
33KV |
|
Secondary Voltage |
0.433KV |
|
2000KVA Transformer Full Load Current |
34.99A/2666.82A |
|
2000KVA Transformer Impedance |
5% |
|
Vector Group |
Dyn11 |
|
Taping on Primary |
5% to -10% in steps of 2.5% Through OFF Load Tap Changer |
|
Cooling |
ONAN |
|
In oil by Thermometer |
50℃ |
|
In winding by resistance |
55℃ |
|
2000KVA Transformer Dimensions |
2270*1620*2050mm |

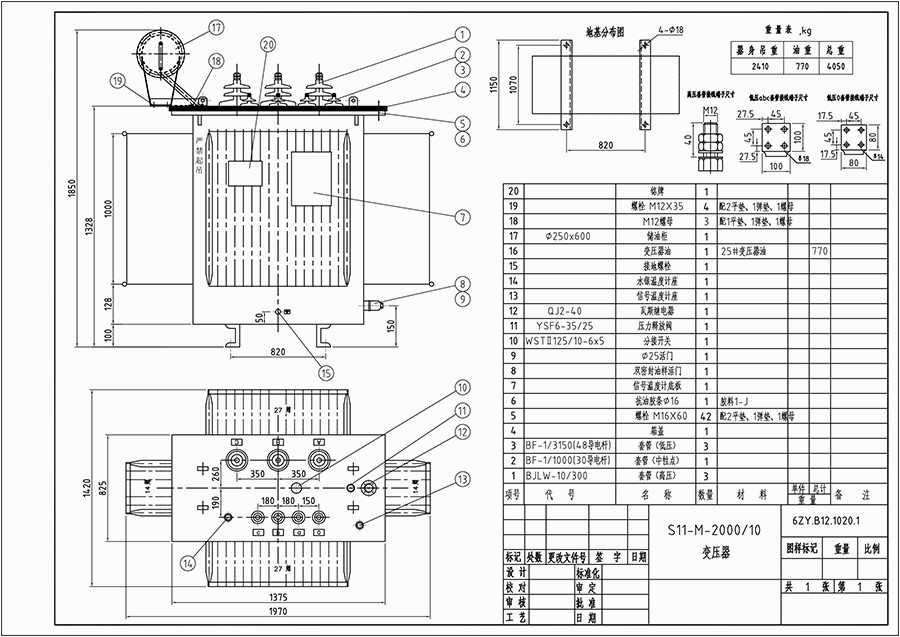

2000KVA Transformer Size
How Much Is 2000 KVA Transformer
Pls send inquiry to us. Our sales engineer will contact you within 24 hours.
