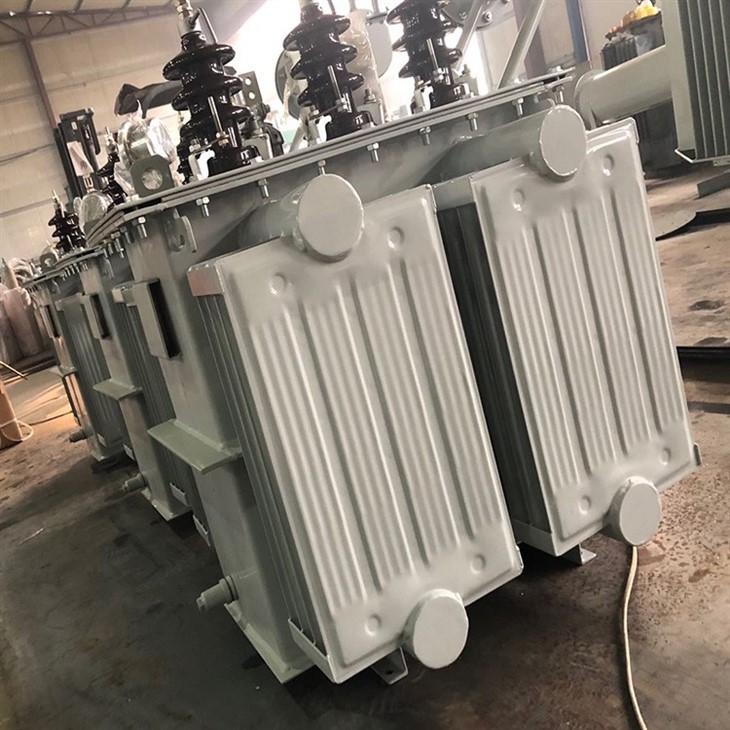

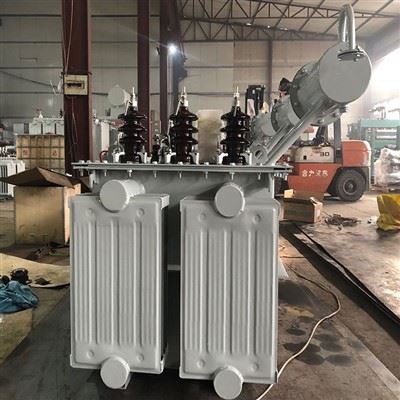

11KV Transformer

11KV Transformer Specification

11KV Transformer Details
The 11 KV Transformer is a vital electrical device that is used to transfer electrical energy from one circuit to another in power distribution networks. It is mainly used for the distribution of power in industrial and commercial sectors where high voltage is required. The transformer comprises of two major components, the Core and the Windings.


11KV Transformer Winding:
The Windings are the most crucial part of the transformer as they are responsible for the transfer of electrical energy. The 11KV Transformer comes with Copper Windings, which have excellent electrical conductivity and are resistant to corrosion. Furthermore, the Windings in 11 KV Transformers are designed to handle high voltage loads, making them suitable for industrial and commercial applications.


11KV Transformer Tap Changer:
The 11KV Transformer also comes equipped with a Tap Changer, which is an essential component that enables the transformer to adjust voltage levels according to the demands of the system. The Tap Changer helps to regulate the voltage output of the transformer, which is necessary when there are variations in the power supply. The Tap Changer is easy to operate and provides a reliable and accurate voltage regulation system.

11KV Transformer Diagram

FAQ
1.What Is 11KV Transformer?
A: An 11 KV transformer is an electrical device that is used to transform electric power from 11,000 volts (11KV) into a lower voltage for utilization purposes.
2.How To Install 11KV Transformer?
A: The installation of an 11KV transformer requires proper site preparation, foundation, insulation, wiring, and connection to the power system by a licensed electrician or qualified technician.
3.How Does A 11KV Transformer Work?
A: An 11KV transformer works by using electromagnetic induction to transfer electrical energy from the high-voltage primary winding to the low-voltage secondary winding through a core made of magnetic material.
4.Safe Distance From 11KV Transformer?
A: The safe distance from an 11KV transformer depends on various factors such as the voltage level, current rating, equipment type, environmental conditions, and human exposure. Generally, a safe distance of 3-5 meters or more is recommended for people and equipment.
5.How Do You Test 11KV Transformer?
A: Testing an 11KV transformer involves various procedures such as insulation resistance, turns ratio, polarity, excitation current, winding resistance, short-circuit impedance, and oil quality testing using specialized instruments and techniques.
6.How Much Is 11KV Transformer?
A: The cost of an 11KV transformer varies depending on the manufacturer, model, capacity, efficiency, and features. Typically, the cost ranges from a few thousand to tens of thousands of dollars.
7.11KV Transformer Maintenance?
A: The maintenance of an 11KV transformer includes regular inspection, cleaning, oil level check, insulation testing, temperature monitoring, and repair or replacement of faulty components by a qualified technician or service provider.
