35KV Three Phase Dry Type Power Transformer

Type:35KV Dry type Transformer
MOQ:1pc
Warranty:2 year
OEM/ODM Service:Yes
Shipping:Sea

Send Inquiry

Features

Products Description

35KV Three Phase Dry Type Power Transformer is a highly efficient and reliable solution for power distribution. Its dry-type design eliminates the need for oil or other hazardous liquids, making it an environmentally friendly option. The transformer is designed to provide a high level of insulation, ensuring long-lasting and safe operation even in harsh environments.

With its three-phase design, the transformer can efficiently handle high voltage and current loads, making it an ideal choice for a wide range of applications. Its compact size also makes it a space-saving solution for facilities where space is at a premium.

Overall, the 35KV Three Phase Dry Type Power Transformer is an essential component for any power distribution system. Its advanced design, high-quality construction, and efficient operation make it an ideal choice for a wide range of applications, from small facilities to large power plants. So if you're looking for a reliable, high-performance transformer, look no further than the 35KV Three Phase Dry Type Power Transformer.

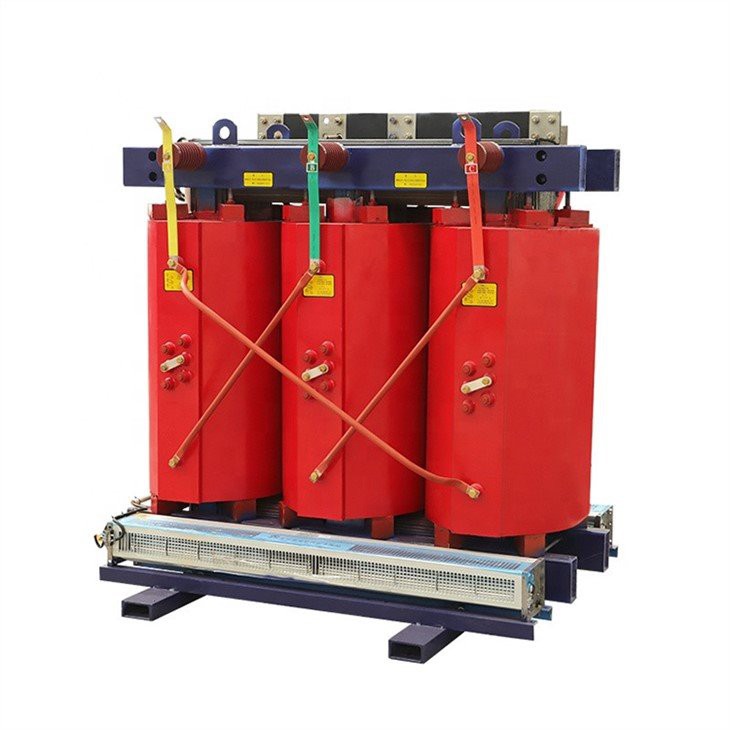

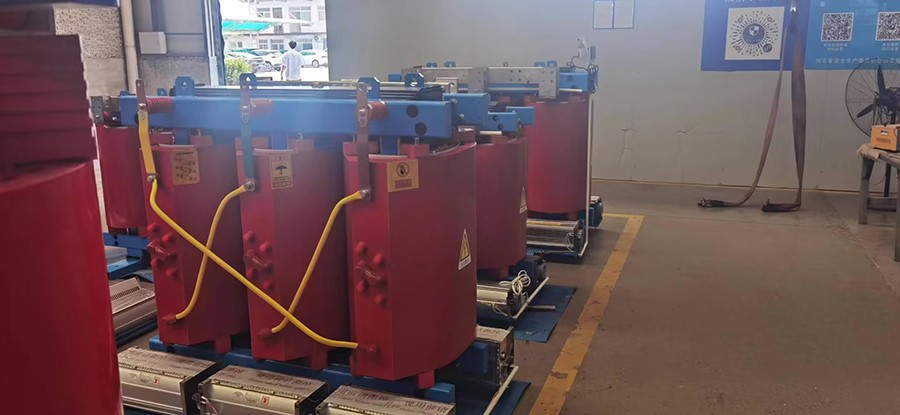

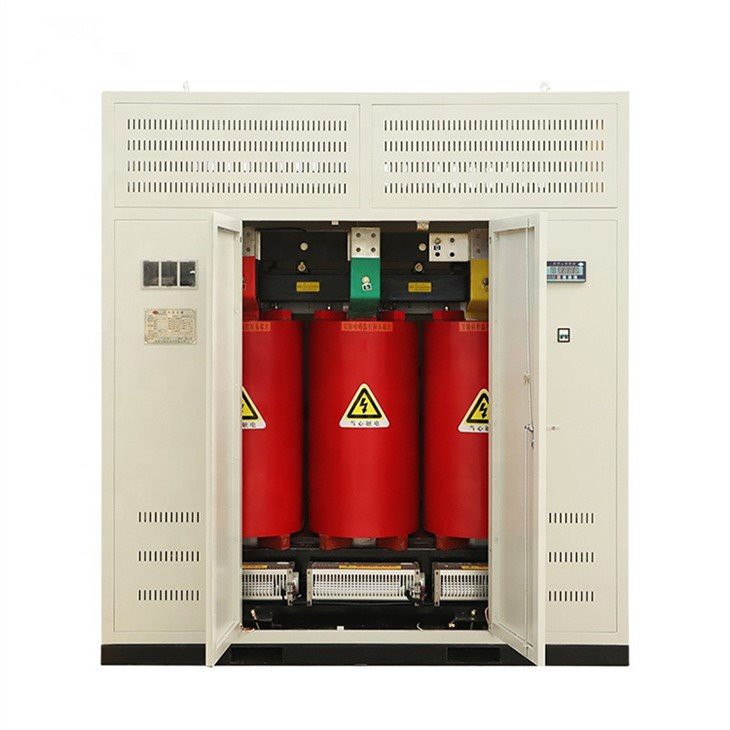

35KV Three Phase Dry Type Power Transformer

Technical Parameter for 35kV & 50kVA-2500kVA With Off Circuit Dry Type Transformer

(KVA)Rated capacity	Voltage Combination			Connection Group Symbol	No-load Loss(W)	Load Loss (W)			No-load Current (%)	Short-circuit Impedance(%)
(KVA)Rated capacity	High Voltage (KV)	Tapping ranges of High Voltage	Low Voltage(KV)	Connection Group Symbol	No-load Loss(W)	130℃(B) (100℃)	155℃(F) (120℃)	180℃(H) (145℃)	No-load Current (%)	Short-circuit Impedance(%)
50	35 36 37 38.5	±2.5% ±5%	0.4	Dyn11 Yyn0	450	1340	1420	1520	2.3	6
100					630	1970	2090	2230	2
160					0.79	2650	2810	3000	1.5
200		±2X2.5% ±5%			0.88	3130	3320	3550	1.5
250					0.99	3580	3800	4060	1.3
315					1170	4250	4510	4820	1.3
400					1370	5100	5410	5790	1.1
500					1520	6270	6650	7110	1.1
630					1860	7250	7690	8230	1
800					2160	8600	9120	9760	1
1000					2430	9860	10400	11100	0.75
1250					2830	12000	12700	13600	0.75
1600					3240	14600	15400	16500	0.75
2000					3820	17200	18200	19500	0.75
2500					4450	20600	21800	23300	0.75

Packing & Delivery

Generally, we will use wooden packing suitable for long distance transportation such as sea transportation.We can also customize special packaging according to customer requirements.

packaging
