Single Phase Pad Mounted Power Transformer

2-YEARS WARRANTY

Our sales manager Grace with 10-years distribution transformer exporter experience

Will Help You Make Technical Solutions and Shipment Solutions

Contact Grace Now!

Single phase pad mounted transformers are designed to improve the performance of KVA rating, compact size, lighter weight, safety and sustainability. It can be directly placed indoors or outdoors, or on streets and green belts to reliably ensure personal safety. It is not only a power supply facility, but also a decorative environment. It is suitable for outdoor installation on the cushion without additional protective housing, and complies with the following standards: iec60076, ANSI ,IEEEC.

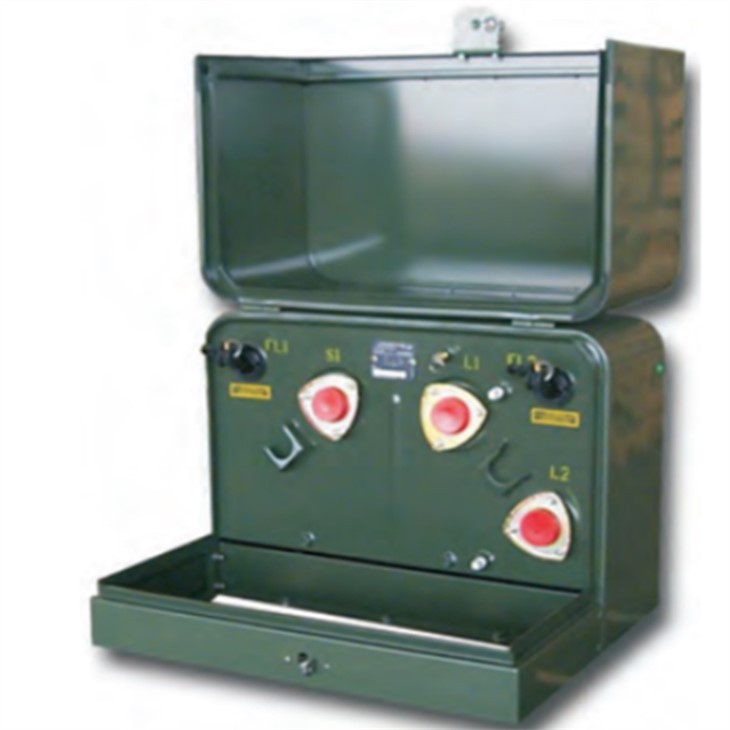

Single Phase Pad Mounted Power Transformer

Features of single phase pad mounted power transformer

1. The high-voltage porcelain sleeve installed on the box cover is equipped with a ring terminal, which is suitable for aluminum or copper cables.

2. The cover adopts a ring seam structure, which is uniform in force and reliable in sealing.

3. The low-voltage shell and terminal of the box wall are ring bolts, and the surface is tin-plated.

4. Equipped with self-sealing pressure relief valve.

5. Single-phase pad-mounted transformers are manufactured according to ANSI standards.

6. High voltage with plug-in fuse.

7. High-voltage optional dual-voltage switch, convenient for use in different power grids.

8. With pressure relief valve, safe and reliable

9. The hooks and brackets of single-phase buffer transformers are produced according to American standards

10. The ground terminal is American type, which can withstand large current

Use environment of single phase pad mounted power transformer

1. The altitude ≤ 1500m

2. Use environment temperature：+40℃—-20℃

3. The annual average humidity ≤90%

4. indoor and outdoor

Technical parameter of single phase pad mounted power transformer
