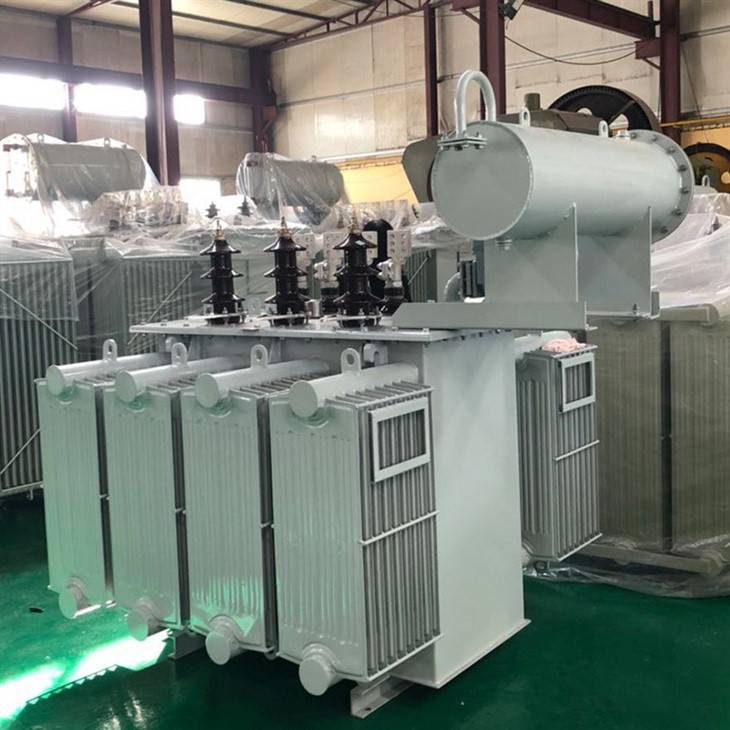

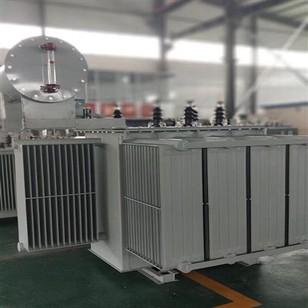

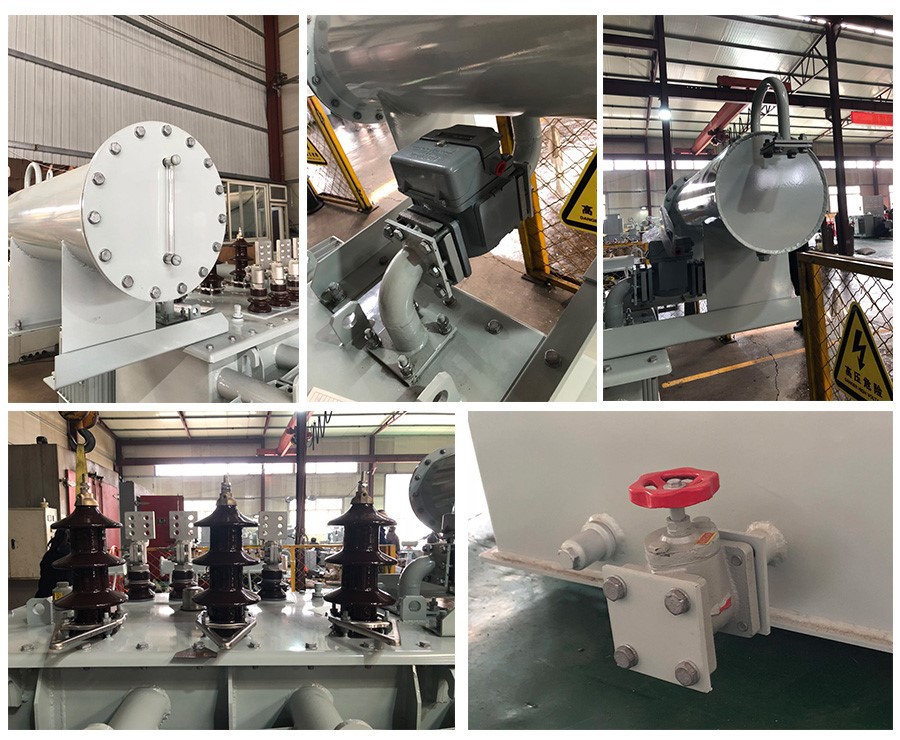

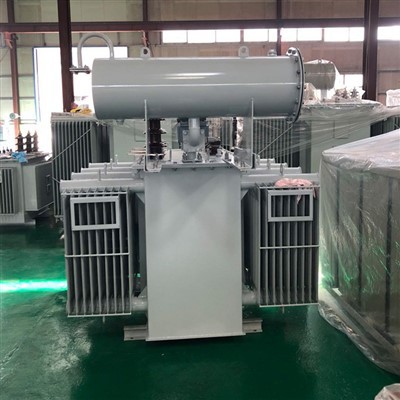

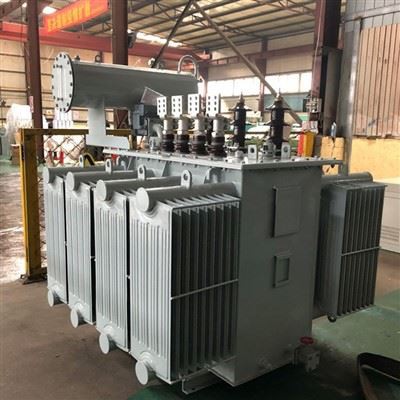

2500 KVA Substation Transformer

Product Description:
The 2500 kVA Substation Transformer is a highly efficient and reliable transformer designed to meet the high demands of modern power systems. It boasts a wide range of features and specifications that make it ideal for use in a variety of applications.

Product Parameters:
Power rating: 2500 kVA
Voltage class: 33 kV / 11 kV
Frequency: 50 / 60 Hz
Cooling: ONAN/ONAF
Vector group: Dyn11 or Yd11
Winding material: Copper or Aluminum

Product Features:
- High efficiency: The transformer features a state-of-the-art design that optimizes the transformer's performance and efficiency, resulting in lower energy costs.
- Robust construction: The transformer is built to withstand harsh environmental conditions and is designed to provide high reliability and long service life.
- Low noise level: The transformer is designed with low noise level features to ensure quiet operation even under high loads.
- Customizable options: The transformer can be customized according to unique customer requirements, such as special voltage and frequency requirements.

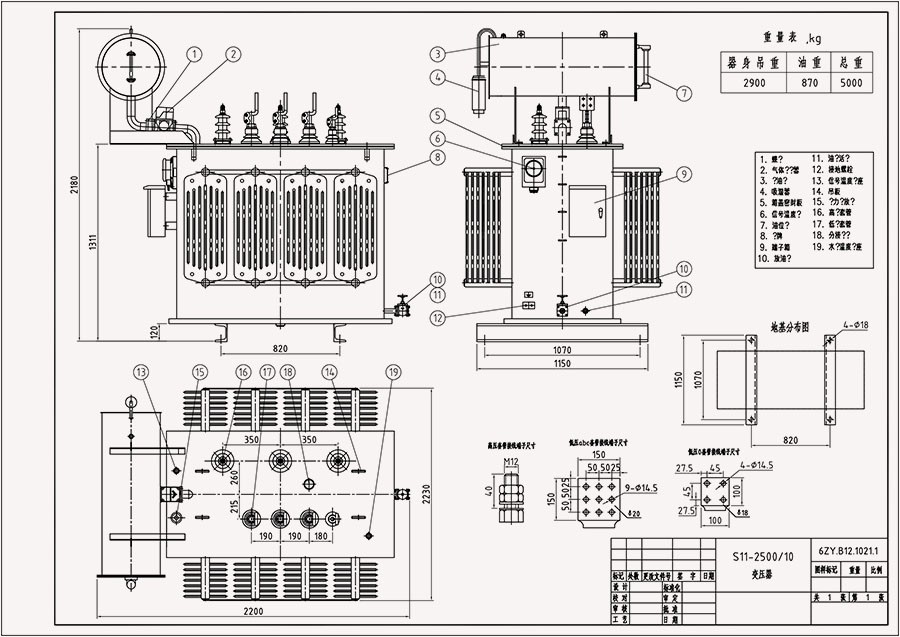

Product Drawings:
The 2500 kVA Substation Transformer comes with detailed drawings and schematics that provide a clear and accurate representation of the transformer's design and dimensions.

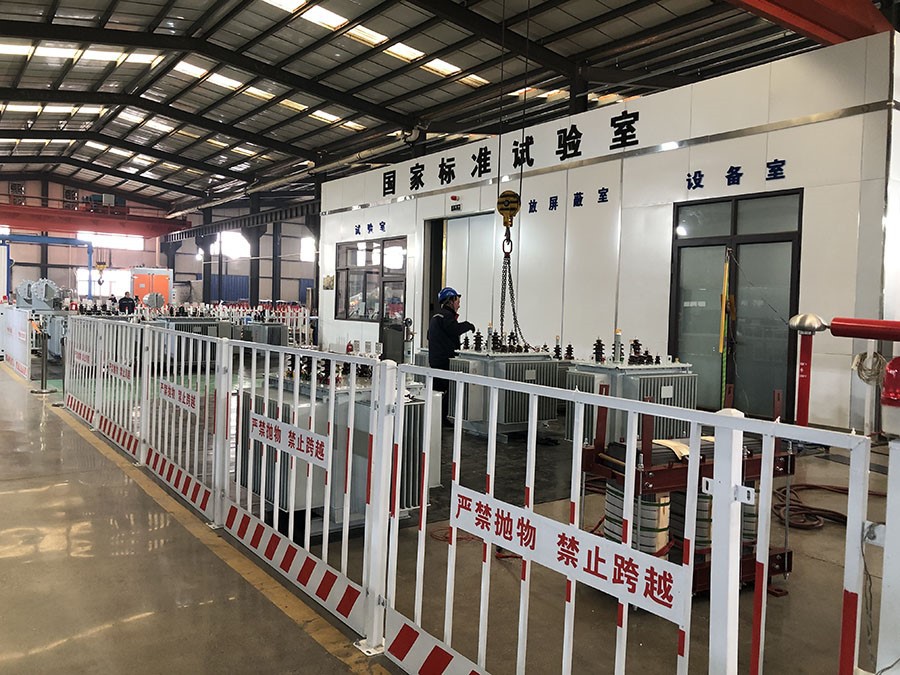

Product Testing:
Each transformer undergoes rigorous testing to ensure they meet or exceed all industry standards and customer requirements. The testing includes:
- Routine tests: Insulation resistance, DC winding resistance, and measurement of voltage ratio and vector group.
- Type tests: Impulse voltage test, partial discharge test, and temperature rise test.

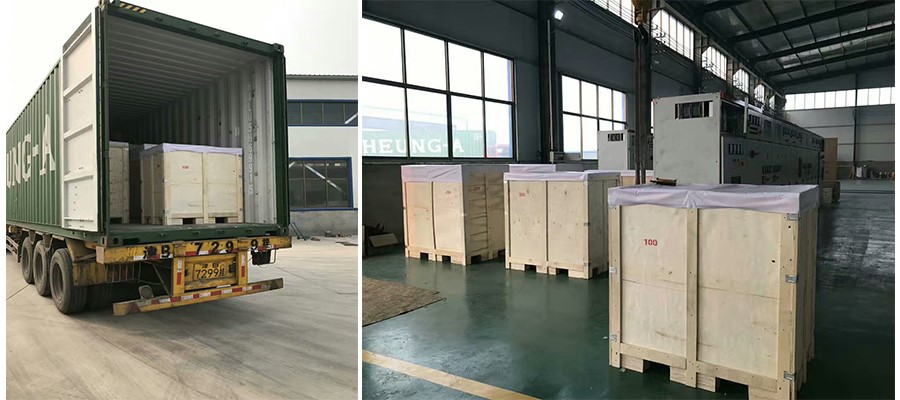

Product Packaging:
The 2500 kVA Substation Transformer is carefully packed to protect it during shipping and handling. It is wrapped in a durable material and secured inside a robust container to prevent damage. The packaging is also designed to ensure easy handling and unpacking upon delivery.

In summary, the 2500 kVA Substation Transformer is a highly-efficient and reliable transformer designed to meet the high demands of modern power systems. It features a wide range of customizable options, robust construction, low noise level, and comes with detailed drawings and rigorous testing to ensure customer satisfaction.
